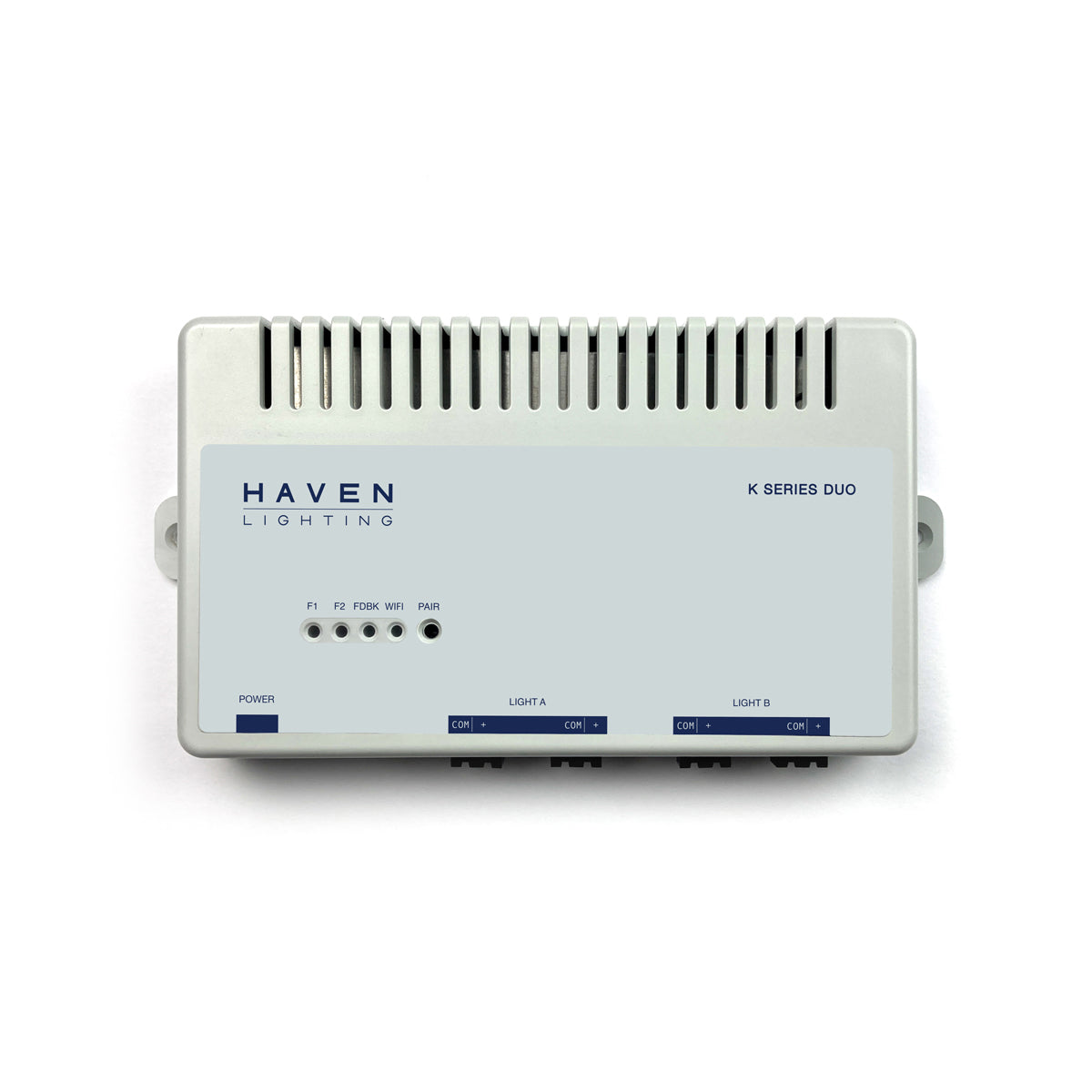

The Classic White Duo LED Controller offers a full range of functionality including two area control that operate as one or independently. This is all easily controlled with the wireless wall switches that are included with the controller. Multiple controllers sync together to operate in unison.
The controller comes with a 24V DC power supply.
The Classic White Duo LED Controller can also control any other single color LED strip that are rated from 10-28V DC.
Add as many wireless switches as you desire. Mount them anywhere. No wires!
Pair switches to Light Area A, B, or both with a press of a button.
2 CONTROLLERS IN 1
Control two Lighting areas separately with one controller.
|Total Current||10A (fused)|
|Light Area A Current||5A (fused)|
|Light Area B Current||5A (fused)|
Configured to work with common emitter or common anode LED configurations.
120V AC to 24V DC Power Supply Included
|Classic White Controller||Accent Lights||Under Cabinet Lights|
|Duo (240W)||80 (40 per channel)||250 in (125 in per channel)|
|WALL SWITCH TECHNICAL DATA|
|Battery Style||2023 Battery|
|Typical Battery Life||5 Years|
|Range||Up to 500 ft|
When used in conjunction with the Under Cabinet Lights we highly recommend using the Under Cabinet Wire.
When used with all of our other products we recommend using the Direct Burial/In Wall 2 Conductor Wire when extra wire is required for connection to the lights.
|IN THE BOX|

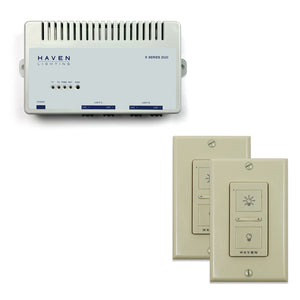

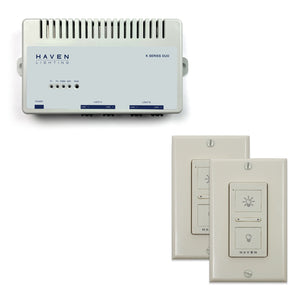

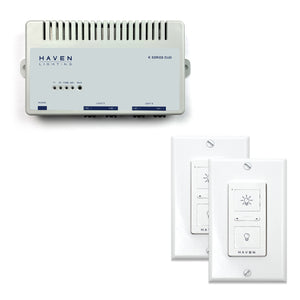

|1 x Classic White Duo LED Controller
2 x Classic White Wireless Wall Switches*
1 x 4-Pin 24V Power Supply
6 x Mounting Screws
6 x Drywall Anchors
2 x Wood Screws
2 x Double Sided Tape (Large for Controller)
4 x Double Sided Tape (Small for Wall Switches)
* Wall plate NOT included
