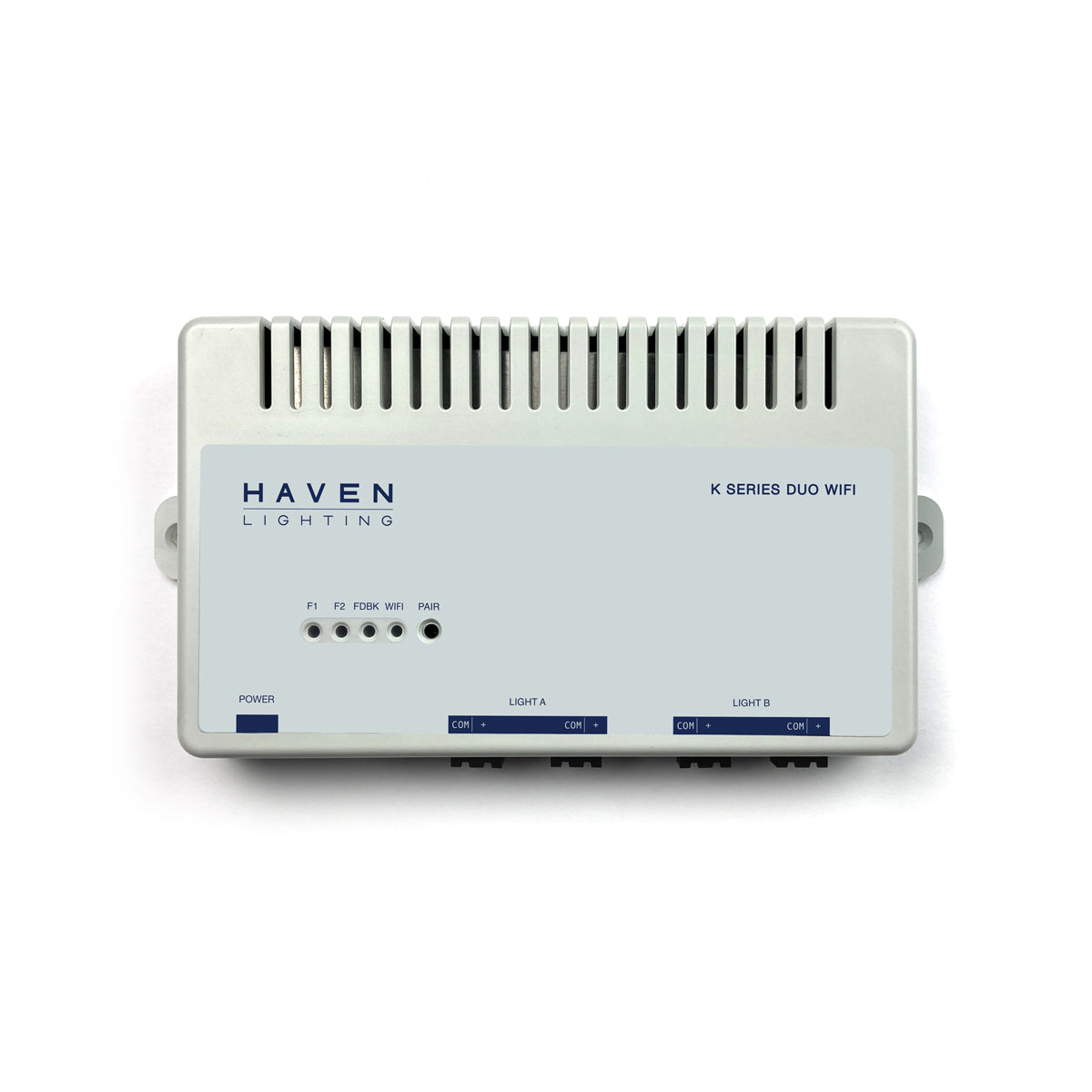

The K Series Classic White Duo WiFi LED Controller offers a full range of functionality including two area controls that operate as one or independently. This is all easily controlled with the wireless wall switches (sold separately). Multiple controllers sync together to operate in unison.
The controller comes with a 24V DC power supply.
The Classic White Duo LED Controller can also control any other single-color LED strip that is rated from 10-28V DC.
HAVEN SMARTPHONE APP
Manage your lights from the palm of your hand with our simple, user-friendly Haven Smartphone App. This highly intuitive feature allows full control over indoor, outdoor, and landscape lighting.
LIGHT GROUPS
Group lights for easy and fast control. Customize lighting groups based on the entire group or individual lights such as "Above Cabinet," "Front Yard," "Cabinet Kick Lighting," "Back Patio" or "Dining Room."
CALENDAR BASED EVENTS
Schedule lights to automatically change color during holiday seasons with our event-based calendar.
TIME-BASED EVENTS
Plan for lights to turn on and off based on your local time.
SOLAR BASED EVENTS
Turn lights on or off based on the sunrise or sunset.
MULTIPLE LOCATIONS
Manage multiple locations simply and easily. Lights are managed per location making naming, access, and operation quick and intuitive.
CONTROL ANYWHERE
Add as many wireless switches as you desire. Mount them anywhere. No wires!
2 CONTROLLERS IN 1
Control two Lighting areas separately with one controller.
GROUP LIGHTS
Pair switches to Light Area A, B, or both with a press of a button.
Installation Guide |
POWER INFORMATION | |
---|---|
Voltage | 24V DC |
Total Current | 10A (fused) |
Light Area A Current | 5A (fused) |
Light Area B Current | 5A (fused) |
WiFi Frequency | 2.4 Ghz |
Spec Sheet |
Configured to work with common emitter or common anode LED configurations.
120V AC to 24V DC Power Supply Included
DIMMING CAPABILITY
15 Brightness Levels (100 Brightness Levels with Smartphone App)
WALL SWITCH TECHNICAL DATA | |
---|---|
Battery Style | 2023 Battery |
Typical Battery Life | 5 Years |
Range | Up to 500 ft |
WIRING CONFIGURATIONS
When used in conjunction with the Under Cabinet Lights we highly recommend using the Under Cabinet Wire.
When used with all of our other products we recommend using the Direct Burial/In Wall 2 Conductor Wire when extra wire is required for connection to the lights.
IN THE BOX |
---|
1 x K Series Classic White Duo WiFi LED Controller 1 x 4-Pin 24V Power Supply 2 x Mounting Screws 2 x Drywall Anchors 2 x Double Sided Tape (Large for Controller) |
