Simple. Sophisticated. Compact.

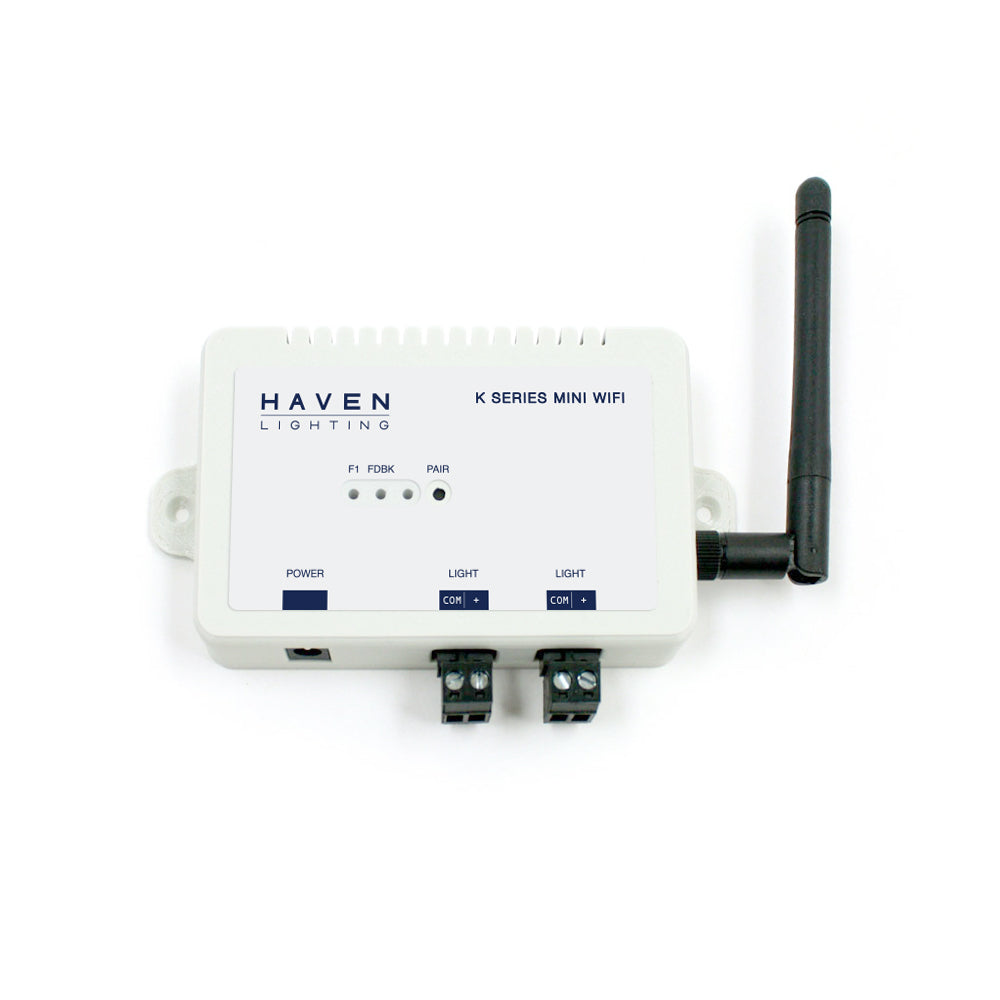

Our Mini LED Controller is designed for dedicated control and works with the Wireless Wall Switch (sold separately).
The Classic White Mini Controller offers dimming capability by the Wireless Wall Switch or upgrade to the WiFi version to control with the Haven Smart Phone App.
HAVEN SMARTPHONE APP
Manage your lights from the palm of your hand with our simple, user-friendly Haven Smartphone App. This highly intuitive feature allows full control over indoor, outdoor and landscape lighting.
LIGHT GROUPS
Group lights for easy and fast control. Customize lighting groups based on the entire group or individual lights such as "Above Cabinet," "Front Yard," "Cabinet Kick Lighting," "Back Patio" or "Dining Room."
CALENDAR BASED EVENTS
Schedule lights to automatically change color during holiday seasons with our event based calendar.
TIME BASED EVENTS
Plan for lights to turn on and off based on your local time.
SOLAR BASED EVENTS
Turn lights on or off based on the sunrise or sunset.
MULTIPLE LOCATIONS
Manage multiple locations simply and easily. Lights are managed per location making naming, access and operation quick and intuitive.
| POWER INFORMATION | |
|---|---|
| Voltage | 24V DC |
| Power |
96W |
| WiFi Frequency | 2.4 Ghz |
Configured to work with Common Cathode LED configurations (connections to light should be Negative, R, G, B)
120V AC to 24V DC Power Supply Included
| Classic White Controller |
Classic White LED Strip |
Number of Accent Lights |
Under Cabinet Lighting |
|---|---|---|---|
| Mini (96W) | 42 ft | 32 (16 per channel) | 100 in |
DIMMING CAPABILITY
15 Brightness Levels (100 Brightness Levels with Smartphone App)
| WALL SWITCH TECHNICAL DATA | |
|---|---|
| Battery Style | 2023 Battery |
| Typical Battery Life | 5 Years |
| Range | Up to 500 ft |
WIRING CONFIGURATIONS
When used in conjunction with the Under Cabinet Lights we highly recommend using the Under Cabinet Wire.
When used with all of our other products we recommend using the Direct Burial/In Wall 2 Conductor Wire when extra wire is required for connection to the lights.
| IN THE BOX |
|---|
| 1 x Classic White Mini WiFi LED Controller 1 x Barrel Jack 24V Power Supply 2 x Mounting Screws 2 x Drywall Anchors 1 x Double Sided Tape (Large for Controller) |
Lens angles can be confusing. To make it easier to decide, just remember that the smaller the angle, the more narrow and further the beam will go. We recommend anything 25° and smaller for second floors and anything 45° and larger for first floors. 45° is our most popular option.
An installation of 15 lights will typically use about 250 feet of wire. 30 lights will use about 500 feet and 45 lights uses about 750 feet of wire and so on.
Once we recieve the order we will contact you within one business day to arrange a schedule for your installation. Your products will be shipped directly to you so they will be at your location for our installers when they arrive. We typically are able to arrange the installation to occur within 2-3 weeks of the order. Once the installation is scheduled, we will call you the day before to confirm with you that our installers will be on your property and to remind you that they will need access to the product. In the unusual case where the installation is not possible for whatever reason, we will give a full refund upon the return of the products in new condition.
