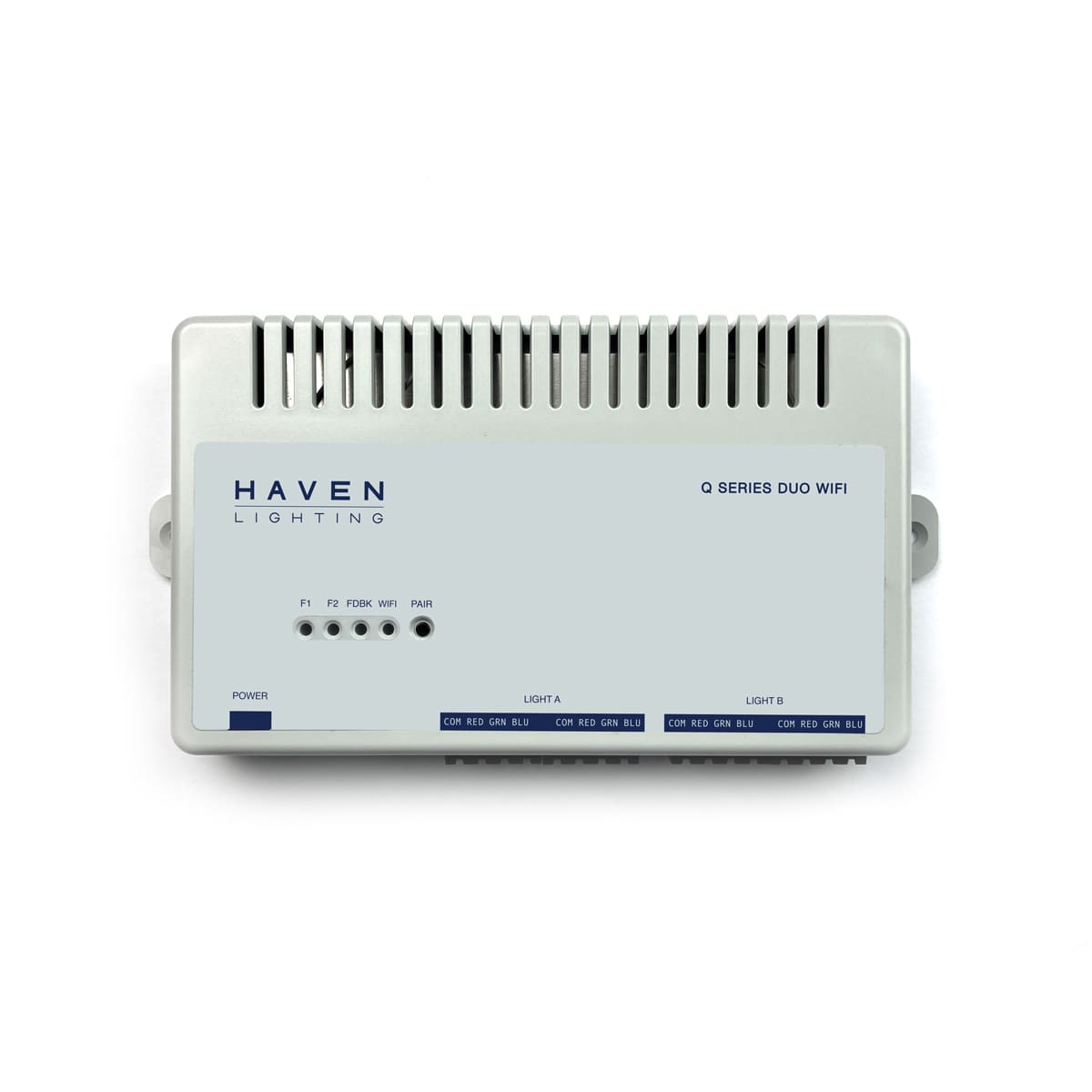

Full Color Duo LED Controller

  • The Full Color Duo LED Controller offers a full range of functionality including two area control that operate as one or independently. The features include adjustable white, dimming, 20 color options, and 6 changing color patterns. The white setting can be adjusted from 2500K – 6500. This is all easily controlled with the wireless wall switches. (Wireless Wall Switches sold separately for WiFi Enabled version) Multiple controllers sync together to operate in unison.

    CONTROL ANYWHERE
    Add as many Wireless Wall Switches as you desire. Mount them anywhere. No wires!

    GROUP LIGHTS
    Pair switches to Light Area A, B, or both with the press of a button.

    2 CONTROLLERS IN 1
    Control two lighting areas separately with one controller.

    Installation Guide
  • POWER INFORMATION
    Voltage 10-28V DC
    Total Current 10A (fused)
    Light Area A Current 5A (fused)
    Light Area B Current 5A (fused)

    Spec Sheet

    Configured to work with Common Cathode LED configurations (connections to light should be Negative, R, G, B)

    120V AC to 24V DC Power Supply Included

    Q Series Controllers Mini (4A) Outdoor Mini (4A) Duo (10A)
    Accent Lights 32 32 80 (40 per channel)
    Deck Lights 32 32 80 (40 per channel)
    Deck Post Lights 64 64 160 (80 per channel)
    Bistro Lights 150 ft. 150 ft. 400 ft. (200 ft. per channel)
    LED Strips 60 ft. 60 ft. 150 ft. (75 ft. per channel)

    COLOR INFORMATION
    Dimming Capability 15 Brightness Levels
    White Color Options 10 White Temperatures

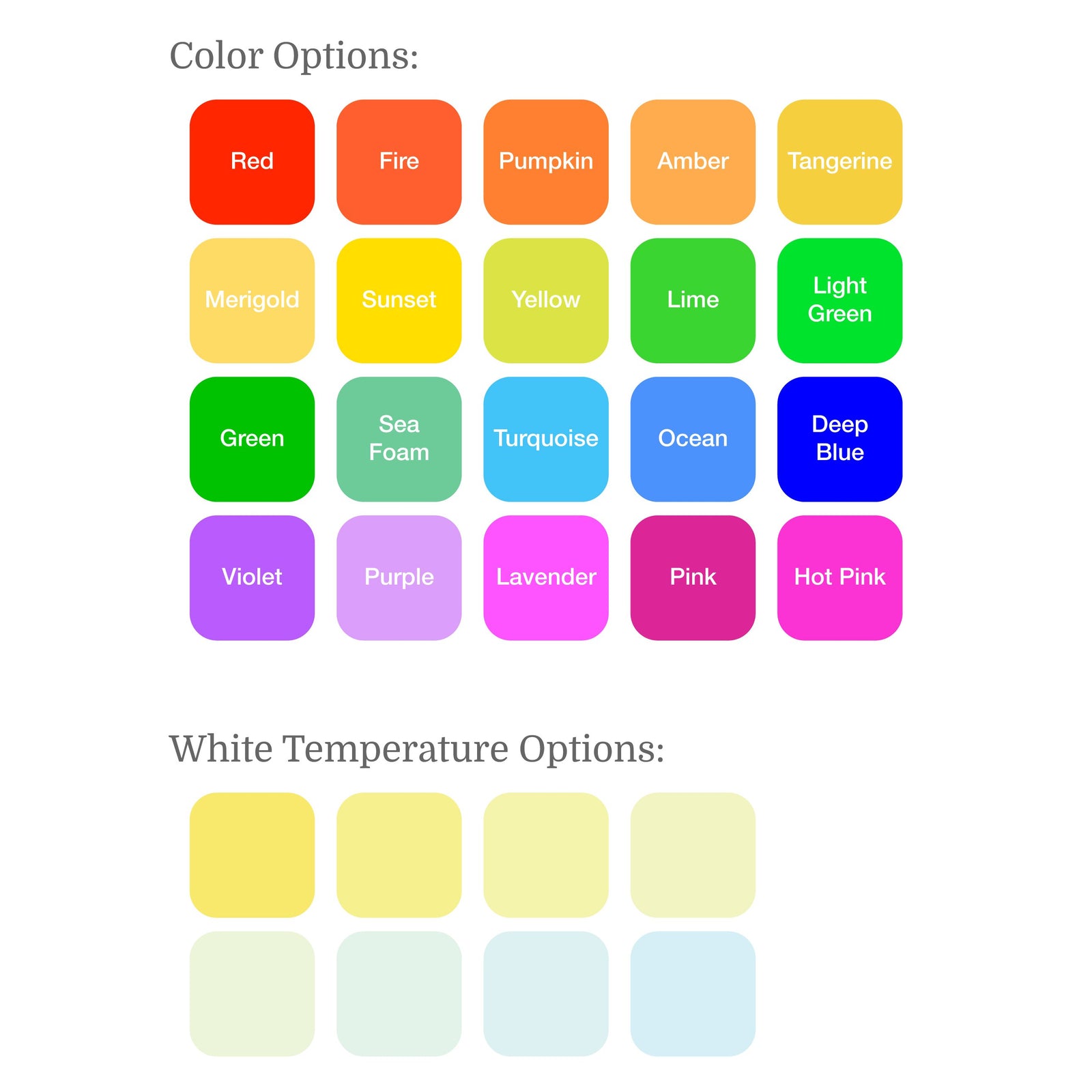

    Color Options Red, Fire, Pumpkin, Amber, Tangerine, Marigold, Sunset, Yellow, Lime, Light Green, Green, Sea Foam, Turquoise, Ocean, Deep Blue, Violet, Purple, Lavendar, Pink, Hot Pink
    Pattern Options [Blend] Red › Pink › Purple, [Blend] Deep Blue › Turquoise › Green, [Blend] All Colors, [Fade] Christmas, [Fade] Fourth of July, [Blink] Halloween

    WALL SWITCH TECHNICAL DATA
    Range Up to 500 ft
    Battery Style 2023 Battery
    Typical Battery Life 5 Years

    WIRING
    We highly recommend using using direct burial/in wall 4-conductor wire when extra wire is required for connection to the lights.
  • IN THE BOX
    1 x Full Color Duo LED Controller
    2 x Full Color Wireless Wall Switch*
    1 x 4-Pin 24V Power Supply
    6 x Mounting Screws
    6 x Drywall Anchors
    2 x Wood Screws
    4 x Double Sided Tape (Small for Wall Switches)
    2 x Double Sided Tape (Large for Controller)

    * Wall plate NOT included
