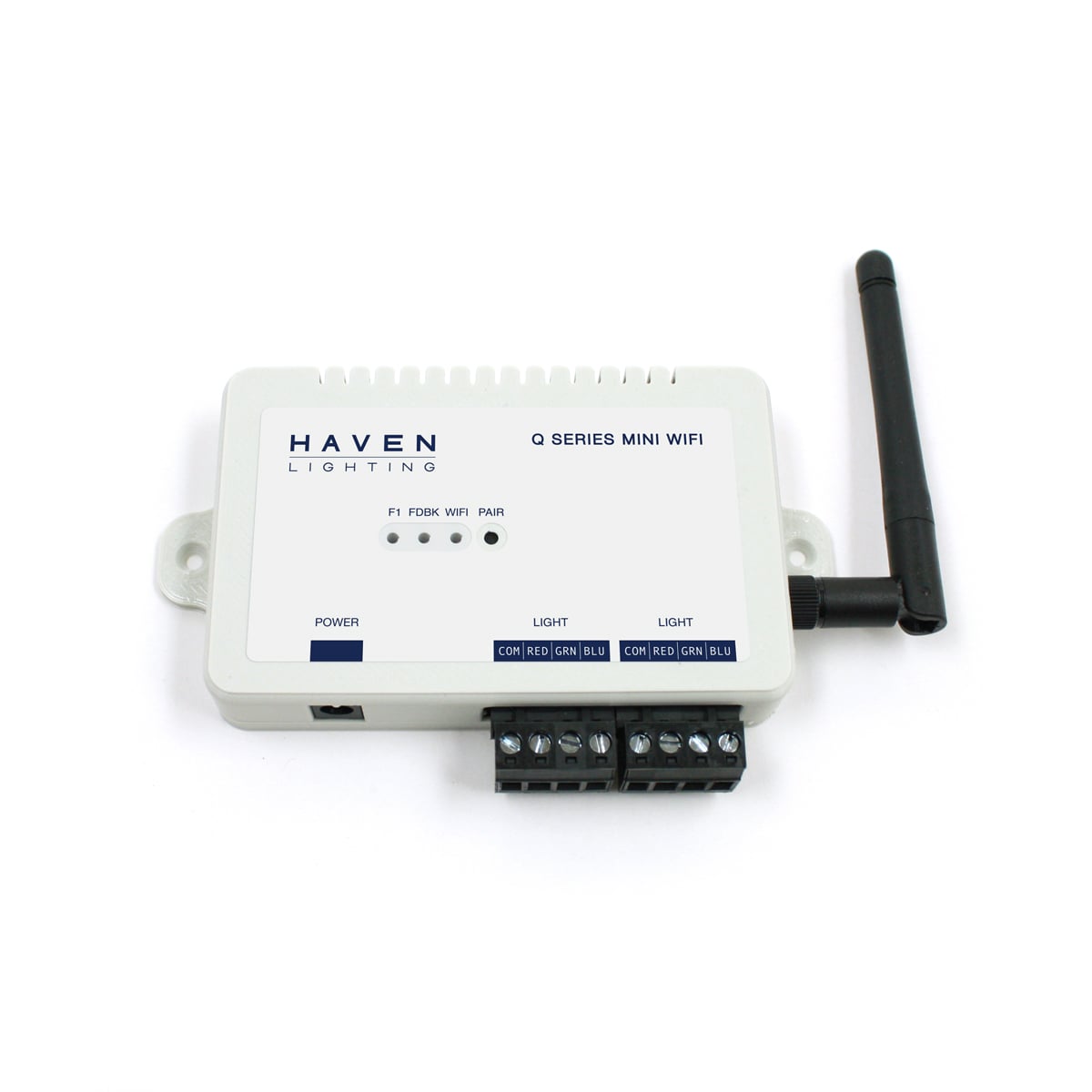

Q Series Full Color Mini WiFi LED Controller
$199.99
-
The Q Series Full Color Mini WiFi LED Controller features include adjustable white, dimming, inputs for home automation, 20 color options, and 7 changing color patterns. The white setting can be adjusted from 2700K – 5000. This is all easily controlled with the wireless wall switch or our mobile app.
Installation Guide -
POWER INFORMATION Voltage 10 – 28V DC Power Options 96W WiFi Frequency (where applicable) 2.4 Ghz
Spec Sheet
Configured to work with Common Cathode LED configurations (connections to light should be Negative, R, G, B)
120V AC to 24V DC Power Supply Included
Q Series Controllers Mini (4A) Outdoor Mini (4A) Duo (10A) Accent Lights 32 32 80 (40 per channel) Deck Lights 32 32 80 (40 per channel) Deck Post Lights 64 64 160 (80 per channel) Bistro Lights 150 ft. 150 ft. 400 ft. (200 ft. per channel) LED Strips 60 ft. 60 ft. 150 ft. (75 ft. per channel)

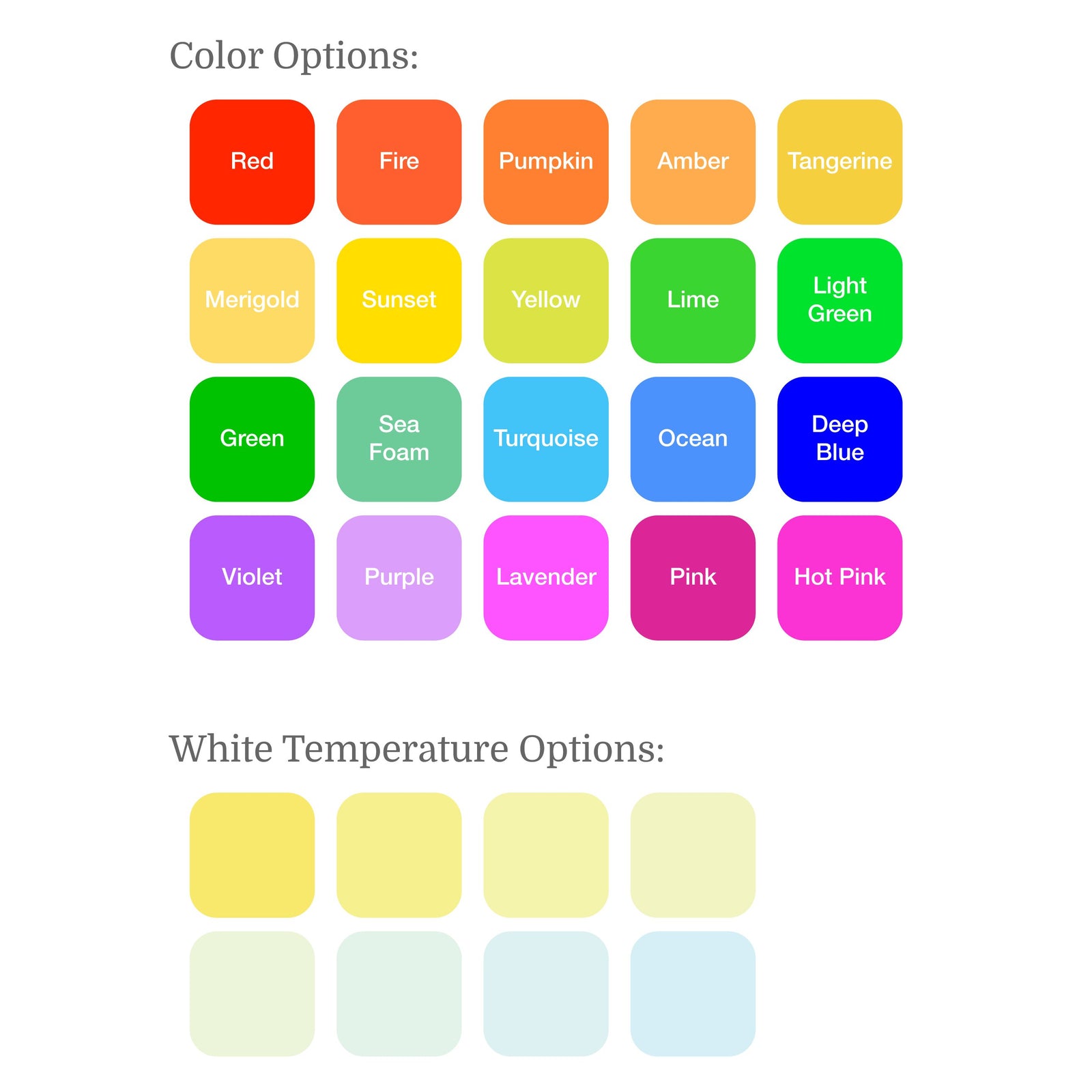

COLOR INFORMATION Dimming Capability 15 Brightness Levels White Color Options 10 White Temperature Color Options Red, Fire, Pumpkin, Amber, Tangerine, Marigold, Sunset, Yellow, Lime, Light Green, Green, Sea Foam, Turquoise, Ocean, Deep Blue, Violet, Purple, Lavender, Pink, Hot Pink Pattern Options [Blend] Red › Pink › Purple, [Blend] Deep Blue › Turquoise › Green, [Blend] All Colors, [Fade] Christmas, [Fade] Fourth of July, [Blink] Halloween
WALL SWITCH TECHNICAL DATA Battery Style 2023 Battery Typical Battery Life 5 Years Range Up to 500 ft
WIRING
We highly recommend using the direct burial/in wall 4 conductor wire when extra wire is required for connection to the lights. -
IN THE BOX 1 x Q Series Full Color Mini WiFi LED Controller
1 x Barrel Jack 24V Power Supply
2 x Mounting Screws
2 x Drywall Anchors
1 x Double Sided Tape (Large for Controllers)
