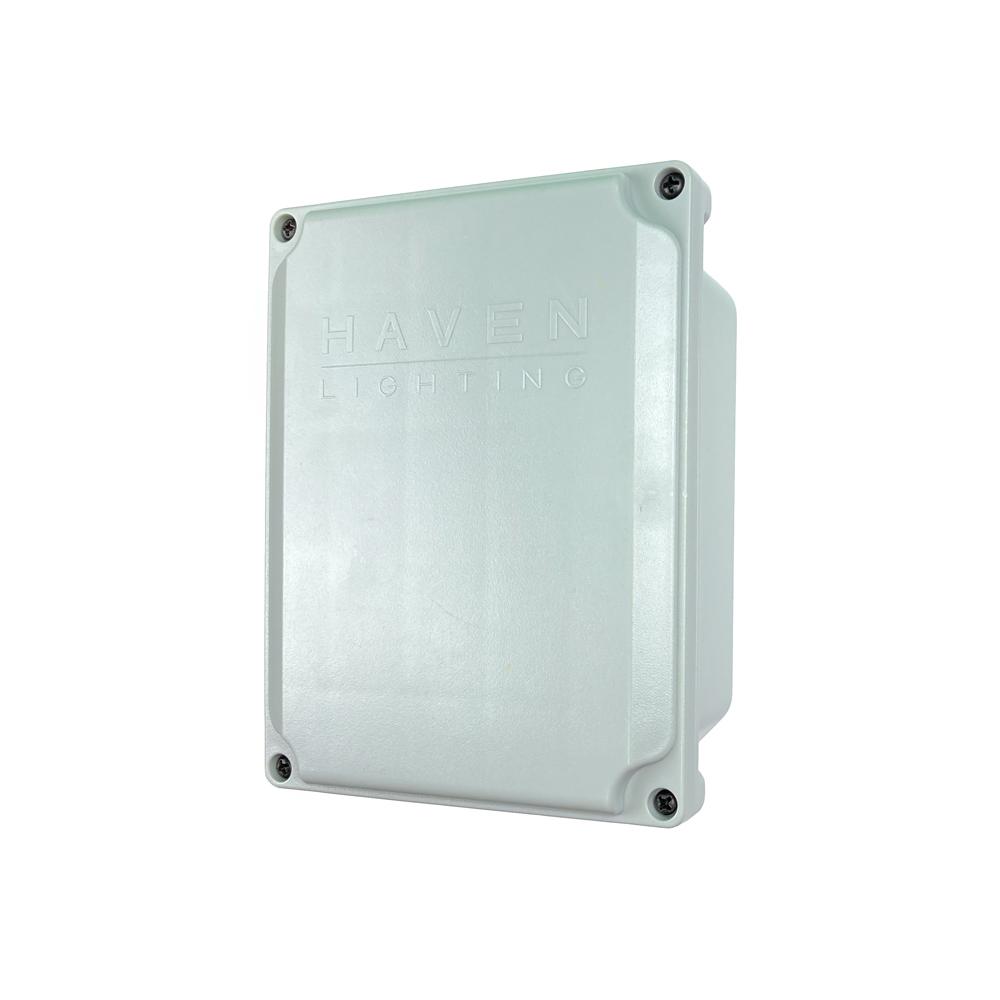

The Q Series Full Color Outdoor Mini WiFi LED Controller features include adjustable white, dimming, inputs for home automation, 20 color options, and 7 changing color patterns. The white setting can be adjusted from 2500K – 6500. This is all easily controlled with the wireless wall switch (sold separately). Multiple controllers sync together to operate in unison.
Installation Guide |
POWER INFORMATION | |
---|---|
Voltage | 10 – 28V DC |
Power | 96W |
WiFi Frequency | 2.4 Ghz |
Spec Sheet |

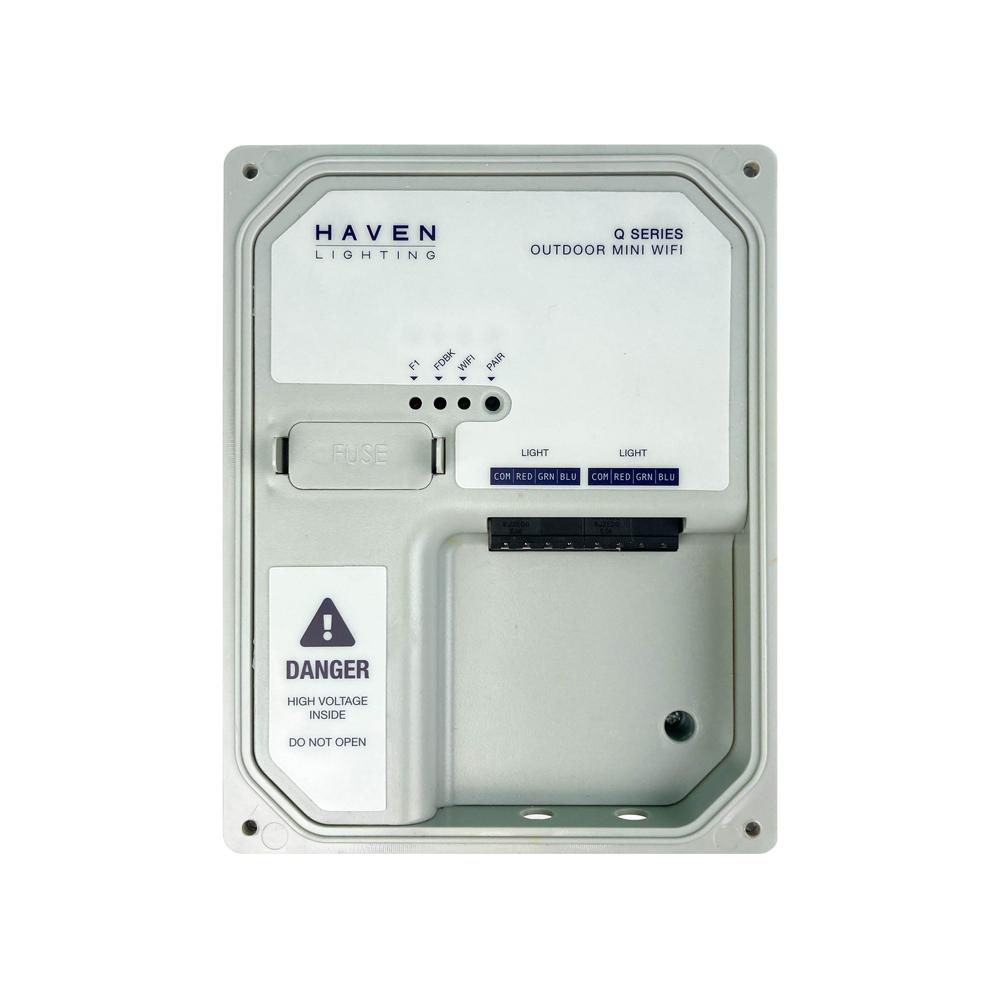

Configured to work with Common Cathode LED configurations (connections to light should be Negative, R, G, B)
120V AC to 24V DC Power Supply Included
Q Series Controllers | Mini (4A) | Outdoor Mini (4A) | Duo (10A) |
---|---|---|---|
Accent Lights | 32 | 32 | 80 (40 per channel) |
Deck Lights | 32 | 32 | 80 (40 per channel) |
Deck Post Lights | 64 | 64 | 160 (80 per channel) |
Bistro Lights | 150 ft. | 150 ft. | 400 ft. (200 ft. per channel) |
LED Strips | 60 ft. | 60 ft. | 150 ft. (75 ft. per channel) |
COLOR INFORMATION | |
---|---|
Dimming Capability | 15 Brightness Levels |
White Color Options | 10 White Temperatures |
Color Options | Red, Fire, Pumpkin, Amber, Tangerine, Marigold, Sunset, Yellow, Lime, Light Green, Green, Sea Foam, Turquoise, Ocean, Deep Blue, Violet, Purple, Lavender, Pink, Hot Pink |
Pattern Options | [Blend] Red › Pink › Purple, [Blend] Deep Blue › Turquoise › Green, [Blend] All Colors, [Fade] Christmas, [Fade] Fourth of July, [Blink] Halloween |
WALL SWITCH TECHNICAL DATA | |
---|---|
Range | Up to 500 ft |
Battery Style | 2023 Battery |
Typical Battery Life | 5 Years |
IN THE BOX |
---|
1 x Q Series Full Color Outdoor Mini WiFi LED Controller 2 x Connectors |
